Design and Application of Electrical Control Cabinets
Electrical control cabinets serve as the core housing for modern industrial automation and power control systems. Their design rationality and application reliability directly impact the stability and safety of entire equipment operations. This article provides an in-depth analysis of structural design, core components, key processes, cost structures, and quality control points of electrical control cabinets, offering comprehensive technical insights.
1. Overview of Electrical Control Cabinets
Electrical control cabinets are specialized enclosures designed to install, protect, dissipate heat, and ensure safe operation for electrical control components (e.g., PLCs, frequency converters, contactors, circuit breakers). Beyond physical support for components, they act as critical barriers ensuring stable operation in harsh industrial environments (high temperature, dust, humidity, electromagnetic interference). Classified by purpose, they include distribution boxes, control cabinets, and operator consoles; by installation method: wall-mounted, floor-standing, and embedded types.
2. Application Fields
Electrical control cabinets are ubiquitous in industrial settings:
- Manufacturing: CNC machines, automated production lines (e.g., automotive assembly), robotic workstations
- Energy & Power: Distribution cabinets, PV inverter cabinets, wind power control cabinets
- Building Automation: Smart lighting control boxes, HVAC control cabinets, elevator systems
- Infrastructure: Pump station control boxes, traffic signal cabinets, wastewater treatment systems
- Machinery: Packaging equipment, food processing machinery, construction machinery electrical systems
3. Core Components
A complete electrical control cabinet comprises:
- Structural Enclosure: Sheet metal chassis providing framework and protection (IP rating).
- Electrical Components: PLCs, circuit breakers, contactors, relays, terminal blocks.
- Wiring: Power cables, signal cables, grounding wires.
- Cooling System: Fans, ventilation grilles, air conditioners (high-power cabinets).
- Operator Interface: Buttons, indicators, touchscreens, emergency stops.
- Safety Features: Door locks, safety relays, insulating barriers.
4. In-Depth Analysis of Sheet Metal Structure (Core Section)
4.1 Key Design Focus Areas
- IP Rating: Select IP54 (dust/water-splash resistant) or IP65 (fully dustproof/water-jet resistant) based on environment.

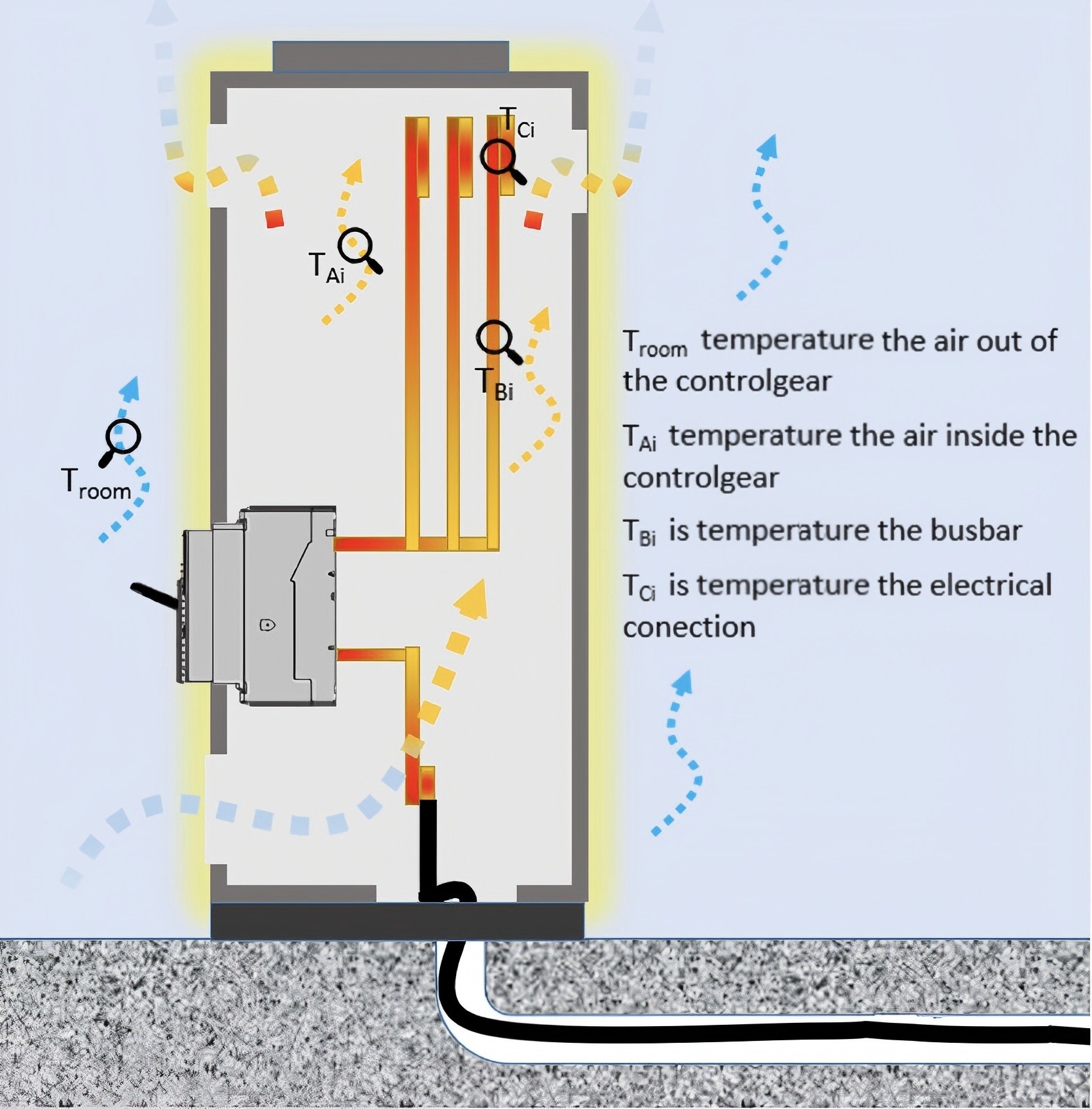

- Thermal Balance: Calculate opening ratios and fan airflow to prevent overheating or dust ingress.
- EMC Shielding: Zinc-nickel coating and conductive gaskets to minimize interference (IEC 61000).
- Structural Strength: Account for component weight and transportation vibrations.
- Ergonomics: Comply with ISO 13857 for operating height, door angle, and maintenance space.
4.2 Materials & Surface Finishes
| Material | Application Scenario | Surface Treatment |
|---|---|---|
| SPCC Cold-rolled Steel | General industrial use | Powder coating (epoxy/polyester) |
| DX51D Galvalume | High corrosion resistance (e.g., coastal) | Zinc-nickel plating |
| SUS304 Stainless Steel | Food/pharma/high-humidity | Brushing/polishing/passivation |
| 5052 Aluminum | Lightweight mobile equipment | Anodizing |
4.3 Critical Manufacturing Processes
- Laser Cutting: High-precision (±0.1mm) hole cutting.

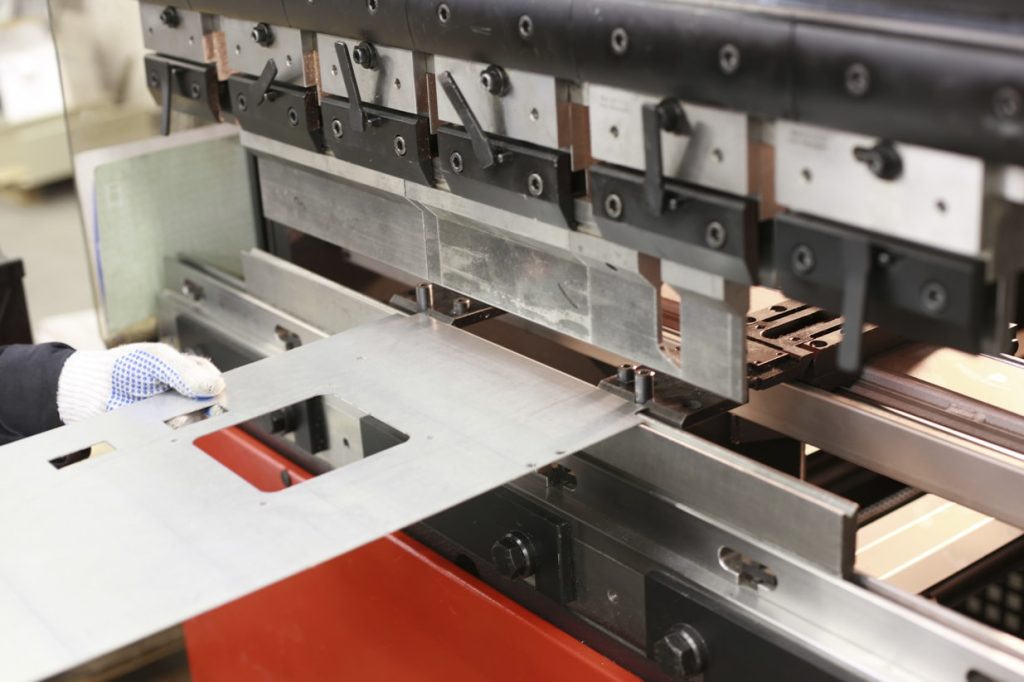

- CNC Bending: Angle control (±0.5°).
- Welding: CO₂ shielded welding (structural parts)/spot welding (door panels).
- Riveting: Rivet nuts (M3-M12) for component mounting.
- Sealing: Foam gaskets/silicone seals (door gaps).
4.4 Quality Control & Failure Analysis
| Defect | Impact | Preventive Measure |
|---|---|---|
| Welding Deformation | Door misalignment/leakage | Jigs + segmented welding |
| Poor Coating Adhesion | Corrosion risk | Phosphating + electrostatic spraying |
| EMC Shielding Failure | System malfunction | Conductive gaskets + continuous welding |
| Inadequate Cooling | Component overheating | Thermal simulation + forced air cooling |
4.5 Cost Structure Breakdown
- Material Cost (40-50%): Sheet type/thickness (typically 1.5-2.0mm).
- Processing Cost (30-35%): Laser/bending hours, welding complexity.
- Surface Treatment (10-15%): Coating thickness (60-80μm) affects corrosion resistance.
- Accessories (5-10%): Seals, hinges, locks (quality variance).
5. PLC Integration Design
- Layout Principles: Away from heat sources (e.g., frequency converters), with overhead cooling space.
- Wiring Standards:
- Segregate high/low voltage (>200mm gap).
- Use shielded twisted-pair cables (e.g., PROFIBUS DP).
- Grounding resistance ≤4Ω (IEC 60364).
- Programming Interface: Reserve USB/Ethernet ports.
- Safety Design: Independent emergency stop circuit (ISO 13849).
6. Common Failures & Solutions
- Overheating Alarms (35% of failures):
- Solution: Add air guides, clean filters, install cabinet AC (internal temp ≤40°C).
- EMI-Induced Signal Errors:
- Solution: Shielded conduits for signal lines, ferrite cores on inverter outputs.
- Condensation (Humid environments):
- Solution: Install heaters (maintain +5°C above ambient), replace door seals.
- Door Lock Failure:
- Solution: Use stainless steel locks, periodic lubrication.
7. Quality Standards & Global Certifications
Key Testing Criteria:
- Structural Strength: Vibration test (IEC 60068-2-6).
- IP Rating: Water/dust tests (IEC 60529).
- Electrical Safety: Withstand voltage (1500V AC/1min), ground continuity (≤0.1Ω).
Global Certifications:
| Region | Certification | Standard | Mark |
|---|---|---|---|
| EU | CE (LVD+EMC) | EN 60204-1 | CE |
| North America | UL/cUL | UL 508A | UL |
| China | CCC | GB 7251.1 | CCC |
| International | IECEx | IEC 60079 | IECEx |
Conclusion
An optimal electrical control cabinet integrates mechanical structure, electrical layout, thermal management, and EMC technologies. With Industry 4.0 advancements, these cabinets are evolving toward intelligence (embedded sensors), modularity (quick assembly), and high density (miniaturization). Mastering sheet metal design principles and certification requirements remains foundational for building reliable industrial control systems.
Key Technical References:
- Standard cabinet dimensions: 600×800×2000mm (W×D×H)
- Thermal design power density: ≤500W/m³ (natural convection)
- Coating thickness: ISO 2808 (60-120μm)
- EMC testing: Radiated emissions limit (30-230MHz ≤40dBμV/m)
